Melting technology

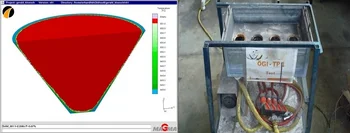

TP1 Test



Technical Data:

Four independent ladles cooled at a rate of 4 K/s

Application:

Measurement of grain size in Al and Mg alloys

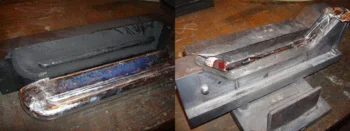

Test Moulds

Technical Data:

  • Flow length test moulds
  • Tatur test moulds
  • Tensile test moulds
  • Hot tear moulds
  • Heat transfer moulds

Application:

Measurement of castability

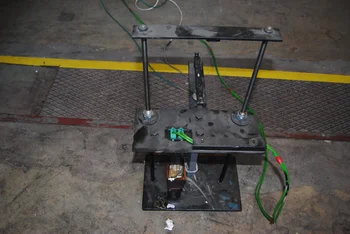

Thermal Analysis

Technical Data:

  • Voltage: 230V, 50-60HZ
  • Thermocouple K-type thermocouple
  • Channels: 8

Applications:

Measurement of cooling curves during solidification of Al and Mg alloys.

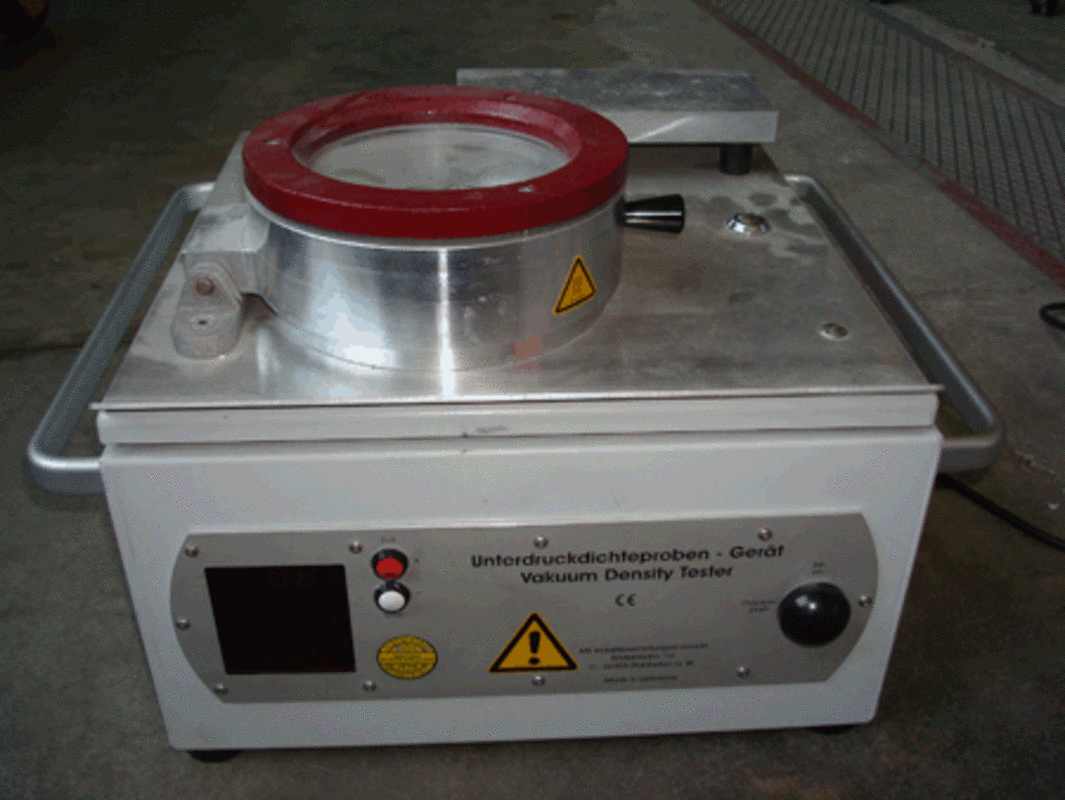

Reduced pressure test (MK Industrievertretungen GmbH,3VT-LC)

Technical Data:

Voltage: 230V, 50-60 Hz
Reproducibility error: 80 mbar +/- 1 mbar
Testing time: 1-99 min

Application:

Qualitative measurement for the gas (hydrogen) content in Al alloys, melt quality.

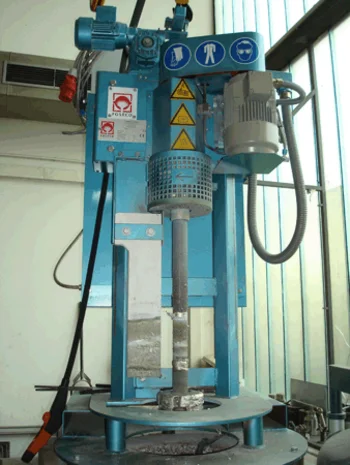

Rotary degasser (Foseco FDU Minidegaser 200L)

Technical Data:

Electric: 400 V, 50 Hz, 2 kW
Operating pressure: 5 bar
Max speed: 500 min -1 Purging gas: Ar and N 2

Application:

Degassing (reducing hydrogen content) and purifying the melt.

Ultrasonic Degaser SoniKKs

Ultrasonic degaser to degas Al-alloys



Technical Data:

 Voltage: 230 V

Start frequency: 20,80kHz





In cooperation with SoniKKs GmbH.
